Record Links with a cascade - an example

Using Cascades- an example

This example shows how to configure a Record Link field to display as a cascade.

How to use this example:

Download the example site, and use this documentation to understand how it was constructed before adapting it for your own needs.

 Download the finished example site

- or -

Start with the earlier example site, that this demonstration starts from, and follow the documentation to replicate the example site yourself.

 Download the earlier example site

What is a cascade?

A cascade is a way of getting a selection from a user by first offering a broad category choice, and then on the basis of their selection, providing a second list to choose from.

Why use cascades?

If you only have a short list of items to choose from, they fit easily in a dropdown list, and there is no need to consider using a cascade.

However if the selection is long, it won't fit into a dropdown nicely, and the system will move over to using a search interface. That's fine if the user knows what they are aiming for, but sometimes you still want to allow them to browse. Cascades allow this.

If the selection is very long, it will also impact on performance, as the whole list has to be downloaded before it can be displayed. However, with a cascade only the list being displayed at each stage is downloaded, so page display is faster, and bandwidth overhead is reduced.

A simple example

This example continues on from the Record Link example. Read that first to become familiar with Form Links.

In the example, we start with a Record Link that allows a US State to be selected. We will extend that to use a cascade such that the user is first asked to select a country, and then is presented with a list of States within the chosen country.

Note: Whilst the user needs to make two selections – Country, then State, it is only the State that gets stored in the Form. Should you need, elsewhere in the site, to find out which Country was selected, you can use a Query with a Join to get that information back.

First we need to create the Form containing the Countries

1. Add a Form to the site, and call it "F: Country"
2. From the Toolbox, choose Configure Form, and on the Form Fields tab:
3. In the Custom Fields section, add a field, type Text, and call it 'Name'
4. In the Form section, set the Navigation Field to the 'Name' field
5. Click Update

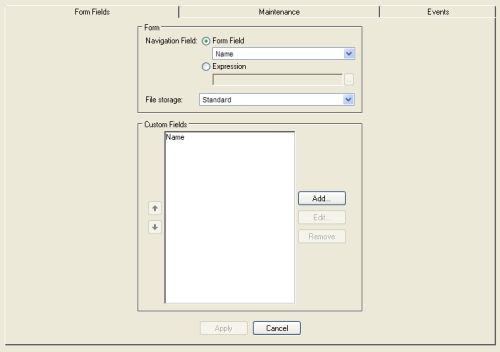

The configuration should look like this:

Now we need to populate the Form with the names of the Countries. We'll just add two to get started.

From the Toolbox, choose View Form

Click the link 'Click here to submit a new record'

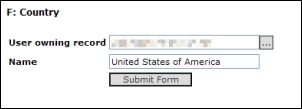

Enter a Country name, and Click 'Submit Form'

You are then shown a confirmation of the entry. To enter another record, choose View Form from the Toolbox.

Note: To speed entry, you can skip this screen: In The Behavior Editor / Settings  / Options / Redirect target after record update, click [...] and select Local Relative Page / Current Page

When done, the form should show them all (or in our case, just two for now):

Now we have our list of Countries, we link to it using a Record Link field on the State Form.

1. Browse to the Form, 'F: State'
2. From the Toolbox, choose Configure Form, and on the Form Fields tab:

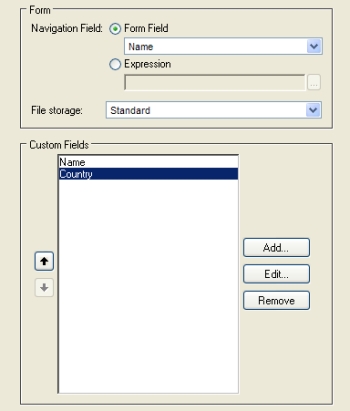

3. Add a Field of type Record Link, called 'Country'
4. Set the 'Target form' to 'F: Country'

   Our existing State records are all in the USA, so we need to set them to that country. We could go through them individually, but that would take some time. Helpfully, the system will do that for us in one go:

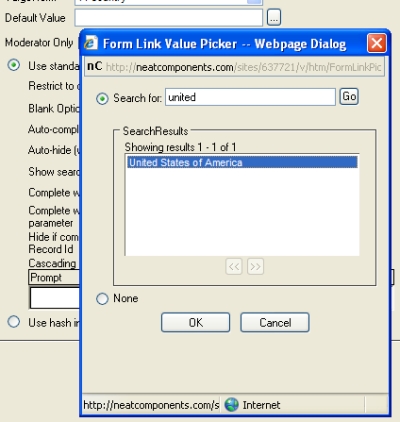

   1. Click the [?] button beside 'Default Value'.
   2. In the search picker, type in 'united', and click 'Go'.



   3. Select the 'United States of America' entry, and click OK


5. Click OK in the field properties dialog.

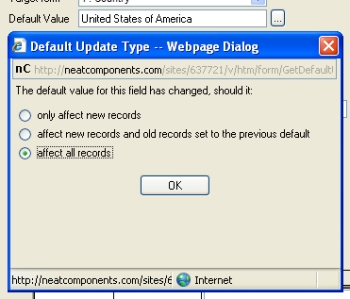

   Because we made a change to the 'Default Value', we are now prompted to confirm which records this should affect:



6. Choose 'affect all records' (so that our existing records get given the 'United States of America' value, and click OK

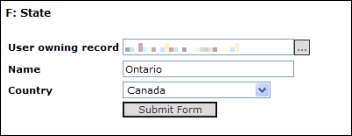

Now we need to add in some more entries into the F: State form for Canada.

For each one, enter the name of the State / Province, and then select Canada from the Country dropdown.

Now we can configure the cascade, which will appear on the 'F: Contact' Form.

At the moment, when entering a new record into the 'F: Contact' form, a dropdown or search picker is shown.

We will change this so a dropdown is first shown asking for the Country, followed by another asking for the State

1. Browse to the Form 'F: Contact'
2. From the Toolbox, choose Configure Form, and on the form Fields tab:

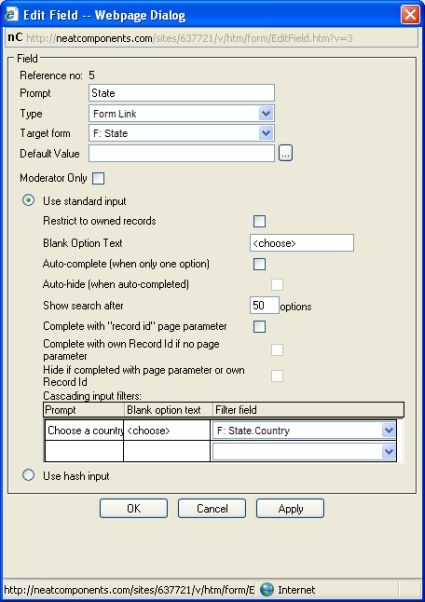

3. Select the State field, and click 'Edit?'
4. In the Cascading input filters section at the bottom of the dialog, select 'F: State.Country' from the dropdown in the Filter field column.
5. In the 'Prompt' column on the same row, enter 'Choose a country'
6. In the 'Blank option text' on the same row, enter '<choose>'
7. For consistency, you can also enter '<choose>' in the 'Blank Option Text' field higher up the dialog.

OK, out of the dialog to save changes.

Now, when you enter a new record in the 'F: Contact' Form, you are asked to choose a country. The State dropdown is shown too, as a hint of what will be asked next, but for now is greyed out.

Once the country is selected, the State dropdown retrieves its list from the server, and is activated to allow the use to select the state

Note: in this example the cascade contained two levels, but there is no limit to the number of levels. Simply configure each form in the chain with Record Link fields from one to the next, and you can then set up a multi-level cascade, by adding more rows in to the Cascading input filters section of the Record Link field you want to show as a cascade.
